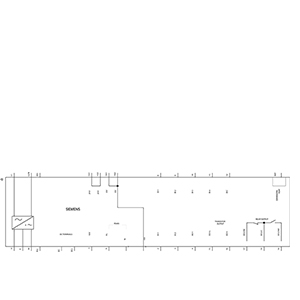

SINAMICS V20, 1AC 230V 1.5kW Unfilt西门子变频器6SL3210-5BB21-5UV1

SINAMICS V20, 1AC 230V 1.5kW Unfilt西门子变频器6SL3210-5BB21-5UV1

下载 M-CAD 和 E-CAD 的产品图片和数据 （9）

SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz 标称功率 1.5kW 有 60 秒 150 % 过载 未过滤 I/O：4 DI，2 DO，2 AI，1 个模拟输出 现场总线：USS/MODBUS RTU 安装有基本操作面板 保护：IP20/ UL 开放 尺寸：AC 90x160x147（宽x高x深）

生命周期状态

有效产品

产品类别

C: 产品制造/生产到订单，无法重复使用或再利用，也不能通过信用退货。

包装尺寸（长 x 宽 x 高）

207.00 x 106.00 x 164.00 mm

净重

1.200 Kg

西门子200-240V驱动代理商  西门子V90电机代理商  西门子G120C变频器代理商

西门子G120C一体式变频器代理商   西门子S200驱动器代理商  西门子V90低压变频器代理商  西门子V20变频器代理商  西门子G120C驱动器变频器代理商  西门子200-240V驱动器代理商  西门子380-480V驱动器代理商   西门子200-240V变频器代理商   西门子380-480V变频器代理商

■Overview The use of pre-assembled MOTION-CONNECT 300 cables ensures high and system-tested, problem-free operation. Degree of protection of pre-assembled power and signal cables and their extensions is IP65 when closed and connected unless otherwise stated. Derating factors for power and signal cables Ambient air temperature °C (°F) 30 (86) Derating factor according to EN 60204-1 Table D.1 1.15 35 (95) 1.08 MOTION-CONNECT 300 cables are not suitable for outdoor use. MOTION-CONNECT 300 cables are approved for a maximum horizontal travel distance of 5 m without support. The cables must be unwound without twisting. G_NC01_XX_00455 4 To maximize the service life of the cable carrier and cables, cables in the carrier made from different materials must be separated in the cable carrier using spacers. The spacers must be filled evenly to ensure that the position of the cables does not change during operation. The cables should be distributed as symmetrically as possible according to their weights and dimensions. Cables with different outer diameters should be separated by spacers as well. When inserting pre-assembled cables into the cable carrier, do not pull at the connector, as this may damage the strain relief or cable clamping. The cables must not be fixed in the cable carrier. They must be freely movable. G_NC01_XX_00290 The cables must be able to be moved without applying force, specifically in the bending radii of the carrier. The specified minimum bending radii must be adhered to. The cable fixings must be attached at both ends at an appropriate distance from the end points of the moving parts in a dead zone. Cables must be installed in accordance with the instructions supplied by the cable carrier manufacturer. In case of vibration load and with horizontal or vertical cable entries, we recommend that the cable is additionally fixed if between the cable strain relief on the cable carrier and the terminal at the motor part of the cable is hanging loose or is not routed. To prevent machine vibrations being transmitted to the connectors, the cable should be fixed at the moving part where the motor is mounted. 40 (104) 1.00 45 (113) 0.91 50 (122) 0.82 55 (131) 0.71 60 (140) 0.58
