HYDAC蓄能器SB330-10A1/112-330A

德国贺德克HYDAC Technology GmbH 专业生产用于流体过滤技术、液压控制技术、电子测量技术的元件和装置，是过滤器、蓄能器、液压阀、电子产品、管夹、电磁铁、液压系统总成等产品的液压件制造商。德国贺德克HYDAC产品的应用范围十分广泛，几乎覆盖各行各业，尤其在冶金工业、汽车工业、电力设备、化工、工程机械、造纸工业、造船工业以及机床制造等领域都得到广泛应用。

HYDAC蓄能器SB330-10A1/112-330A规格描述

技术数据

产品特点

流体接口，法兰：无法兰，但有螺纹

公称体积：10升

系列：330

充气压力可调：是

气囊材料：NBR（橡胶）

蓄能器壳体材料：碳钢

流体接口材料：碳钢

型号：是

ATEX认证：否

流体侧的附加设备：无附加设备

备用版本：否

Technical data

Product Features

Fluid port, flange：Without flange, but thread

Nominal volume：10 l

Series：330

Pre-charge pressure adjustable：Yes

Material Bladder：NBR

Material Accumulator shell：Carbon steel

Material – fluid port：Carbon steel

Preferred models：Yes

ATEX：No

Suppl. equipment, fluid-side：No additional equipment

Back-up version：No

HYDAC蓄能器SB330系列产品简介

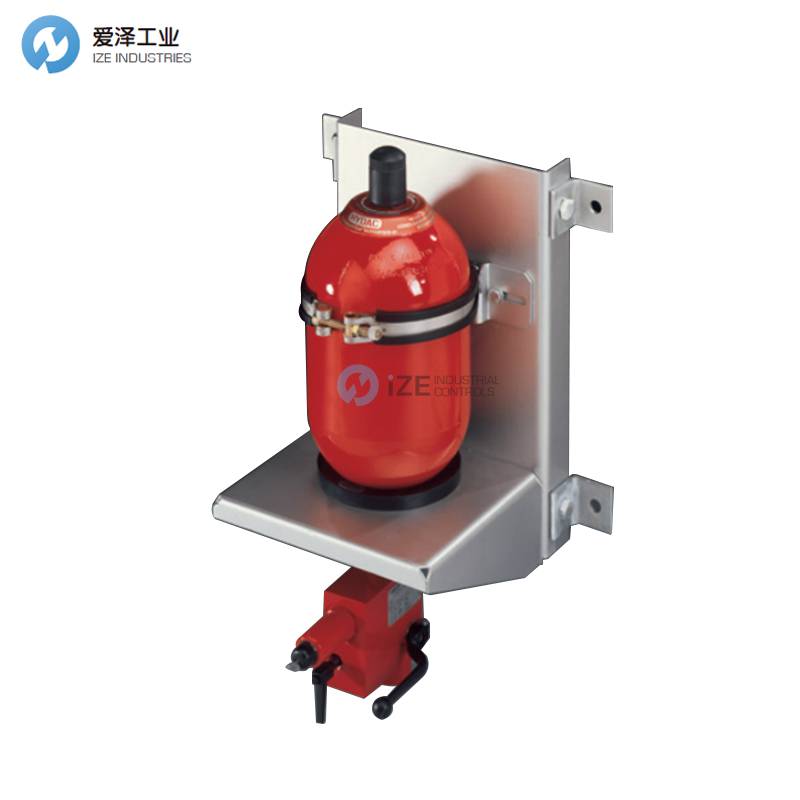

The HYDAC accumulator unit ACCUSET SB consists of a bladder accumulator SB, a safety and shutoff block SAF and the appropriate accumulator set SEB. The parts are designed for optimum compatibility and form a compact, ready-to-install device.

This space-saving combination simplifies the connection of the hydraulic accumulator to the hydraulic system, reduces maintenance costs and considerably reduces the time and effort required for installation.

Advantages:

Simple and secure mounting of the hydraulic accumulator at the installation site

Connection of the hydraulic accumulator with a hydraulic system via a safety and shut-off block

Protects the hydraulic accumulator from excessive pressure

Discharge of the hydraulic accumulator to the tank via a pressure release valve

Separation of the hydraulic accumulator from the system

Two additional hydraulic connections on the shut-off block for accessories (e.g. pressure gauge)

HYDAC蓄电池单元ACCUSET SB由一个气囊蓄电池SB，一个安全切断块SAF和相应的蓄电池组SEB组成。 这些零件的设计旨在实现zuijia兼容性，并形成紧凑的，随时可安装的设备。

这种节省空间的组合简化了液压蓄能器与液压系统的连接，降低了维护成本，并大大减少了安装所需的时间和精力。

优点：

在安装现场将液压蓄能器简单安全地安装

液压蓄能器通过安全切断块与液压系统的连接

保护液压蓄能器免受过大压力

液压蓄能器通过泄压阀排放到油箱

液压蓄能器与系统的分离

附件的关闭块上的两个附加液压接口（例如压力表）

HYDAC蓄能器SB330系列其他常用型号：

HYDAC SB330-1A1/112U-10M-330 3033471

HYDAC SB330-1A1/112U-10Y1-330 3033472

HYDAC SB330-2.5A1/112U-10M-330 3033473

HYDAC SB330-2.5A1/112U-10Y1-330 3033474

HYDAC SB330-4A1/112U-10M-330 3033475

HYDAC SB330-4A1/112U-10Y1-330 3033476

HYDAC SB330-6A1/112U-10M-330 3033477

HYDAC SB330-6A1/112U-10Y1-330 3033478

HYDAC SB330-10A1/112U-10M-330 3033479

HYDAC SB330-10A1/112U-10Y1-330 3033480

HYDAC SB330-13A1/112U-10M-330 3033481

HYDAC SB330-13A1/112U-10Y1-330 3033482

HYDAC SB330-13A1/112U-20M-330 3033483

HYDAC SB330-13A1/112U-20Y1-330 3033484

HYDAC SB330-20A1/112U-20M-330 3033485

HYDAC SB330-20A1/112U-20Y1-330 3033486

HYDAC SB330-24A1/112U-20M-330 3033487

HYDAC SB330-24A1/112U-20Y1-330 3033488

HYDAC SB330-32A1/112U-20M-330 3033489

HYDAC SB330-32A1/112U-20Y1-330 3033490

HYDAC SB330-32A1/112U-32M-330 3033491

HYDAC SB330-32A1/112U-32Y1-330 3033492

HYDAC SB330-50A1/112U-20M-330 3033493

HYDAC SB330-50A1/112U-20Y1-330 3033494

HYDAC SB330-50A1/112U-32M-330 3033495

HYDAC SB330-50A1/112U-32Y1-330 3033496

HYDAC Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于HYDAC蓄能器SB330-10A1/112-330A的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@HYDAC-industries.com / browse our website:www.ize-industries.com.

HYDAC蓄能器SB330-10A1/112-330A产品参数
